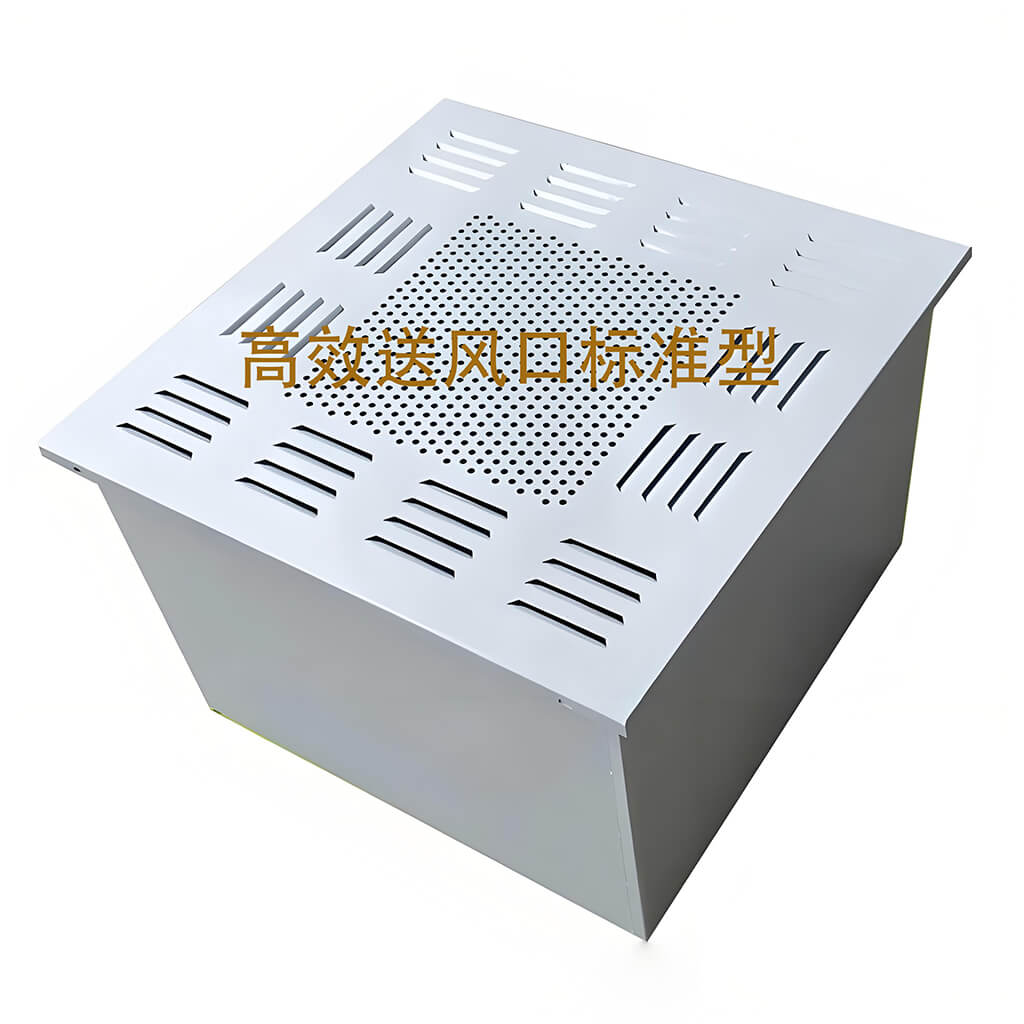

High Efficiency Air Supply Outlet – Standard Type
Standard cleanroom high-efficiency terminal air supply outlet for terminal filtration integration and project-specific ceiling installation.
PRODUCT DETAILS
Product Overview

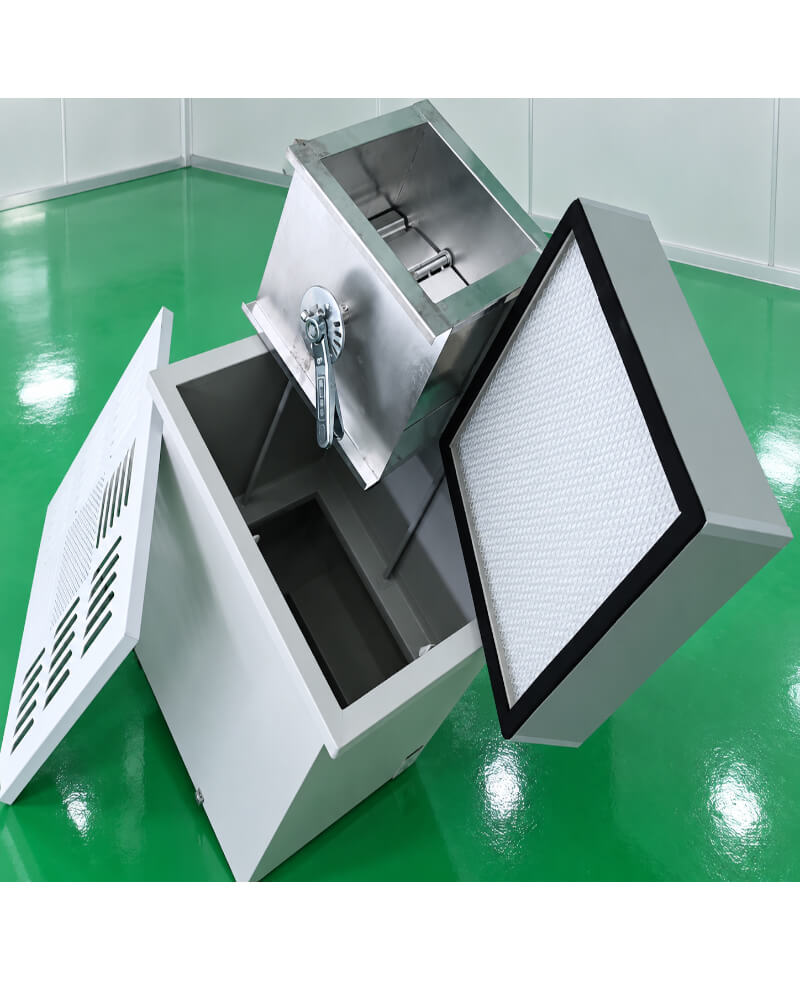

BAIHANGDA High Efficiency Air Supply Outlet - Standard Type is a terminal air-supply and filtration housing for cleanroom ventilation systems. It is designed to receive treated air from the HVAC system, support terminal high-efficiency filtration and distribute clean air into controlled spaces.
Construction and interface details are selected according to the project. The product family can be supplied with powder-coated cold-rolled steel plenum construction and stainless-steel diffuser components depending on the required installation.
Typical Applications
- Pharmaceutical and medical cleanrooms
- Electronics and precision manufacturing clean areas
- Laboratories and controlled-environment rooms
- Cleanroom ceiling terminal air-supply points
Product Features
- Terminal air-supply and high-efficiency filter integration
- Suitable for cleanroom ceiling installation
- Project-specific plenum, diffuser and connection configuration
- Custom dimensions and interface details available according to drawings
Selection Information
Please provide the required airflow, ceiling opening or installation dimensions, duct connection size, housing material preference, filter interface and project conditions. BAIHANGDA will recommend the suitable outlet configuration according to the cleanroom system design.
PROJECT-SPECIFIC CONFIGURATION
Technical Parameters
Final dimensions, wall interface, sealing, observation window and hardware follow the confirmed project configuration.
| Product Type | High Efficiency Air Supply Outlet - Standard Type |
|---|---|
| Housing Material | Steel construction |
| Outlet Size | Standard or customized according to ceiling layout |
| Airflow | Matched to cleanroom ventilation design |
| Duct Connection | According to project interface requirement |
| Filter Interface | Configured for the selected terminal filter |
| DOP Test Port | Optional when required by the project |
| Installation | Ceiling / terminal air-supply installation |
